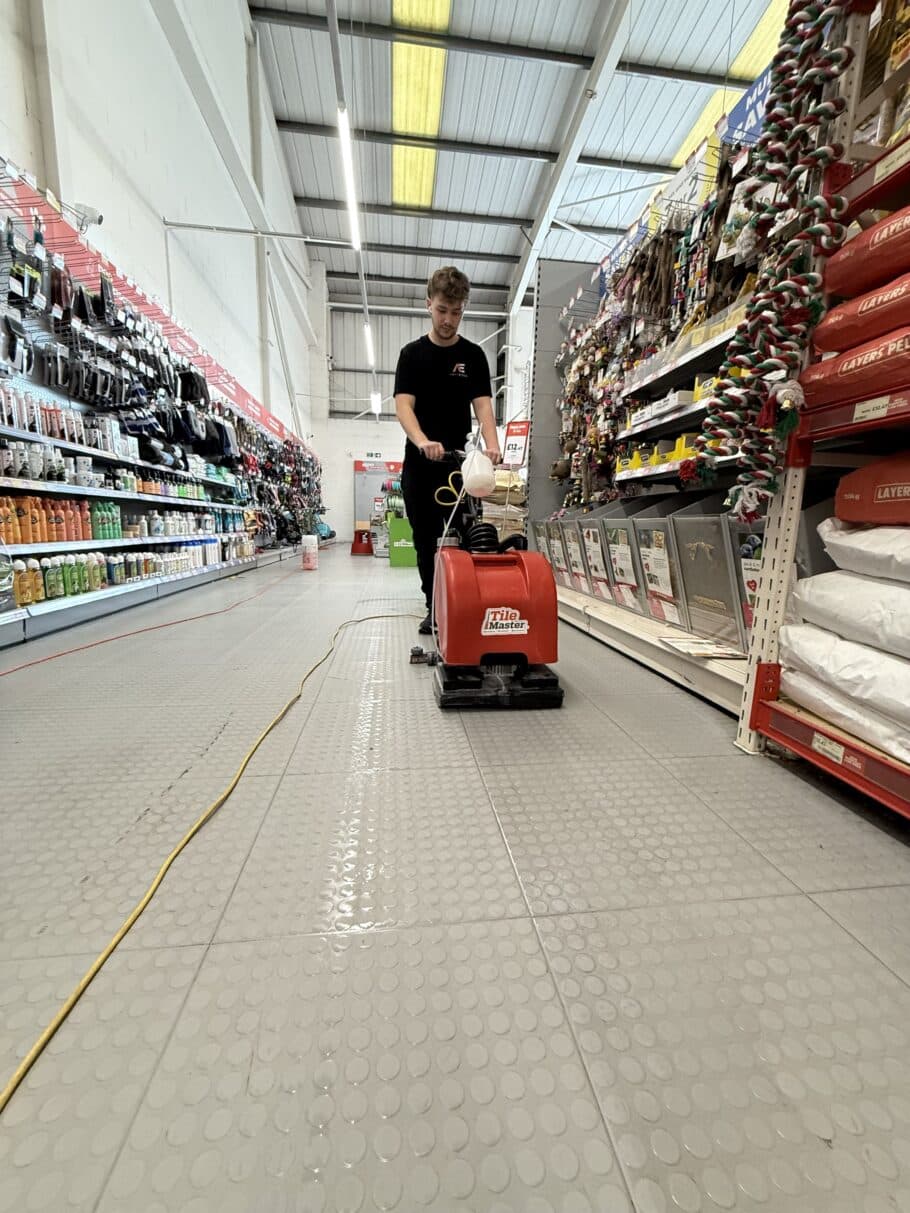

TileMaster 40 Scrubber Drier Machine

Instruction Manual

1. Introduction

Thank you for purchasing the TileMaster 40 Scrubber Drier Machine. This manual provides step-by-step instructions to ensure safe and efficient operation. Please read carefully before use.

2. Safety Precautions

• Always read the manual before operating the machine.
• Use appropriate personal protective equipment (PPE) such as gloves and safety shoes.
• Ensure the power supply matches the machine’s voltage (230V).
• Do not operate with wet hands to prevent electrical hazards.
• Keep cables away from moving parts to avoid entanglement.
• Never use the machine on steep slopes or uneven surfaces.
• Turn off and unplug before performing maintenance.

3. Machine Components

• Handle & Control Panel – For maneuvering and operation.
• Solution Tank (8L) – Holds the cleaning solution.
• Recovery Tank (10L) – Collects dirty water.
• Rotating Brush (40cm Width) – Cleans surfaces effectively.
• Squeegee Assembly – Dries the floor after scrubbing.
• Power Cable (5m Length) – Connects to a standard 230V outlet.

4. Setup & Assembly

1. Unboxing – Carefully remove the machine from its packaging.
2. Attach the Handle – Secure it to the main body using the provided screws.
3. Fill the Solution Tank – Pour the recommended tilemaster cleaning solution and water mixture.
4. Connect to Power – Plug the machine into a standard outlet.
5. Install Brushes/Pads – Choose the appropriate pad for your floor type.
6. Check Recovery Tank – Ensure it is empty and properly installed.

5. Operating Instructions

Starting the Machine

1. Turn On Power – Press the power button on the control panel.
2. Select Cleaning Mode – Adjust pad and water flow as needed.
3. Lower the Brush & Squeegee – Engage the cleaning head to the floor.
4. Begin Cleaning – Slowly move forward, allowing the machine to scrub and dry.
5. Monitor Water Levels – Refill solution tank as needed and empty the recovery tank when full.

After Cleaning

1. Turn Off the Machine – Switch off and unplug from power.
2. Empty Tanks – Dispose of dirty water and rinse both tanks.
3. Clean the Brush & Squeegee – Remove any debris and rinse thoroughly.
4. Store Properly – Keep in a dry, cool location to prevent damage.

6. Maintenance & Troubleshooting

Routine Maintenance

• Check brushes and pads for wear and replace when necessary.
• Clean filters and nozzles regularly to prevent clogging.
• Inspect power cables for any signs of damage.
• Lubricate moving parts as required.

Troubleshooting Guide

7. Warranty & Support

• The TileMaster 40 comes with a 12-month warranty covering manufacturing defects.
• For technical support, contact us at:
  📞 Phone: 0161 444 0377
  📧 Email: info@tilemaster.co.uk
  🌐 Website: www.tilemaster.co.uk

Thank you for choosing TileMaster 40 Scrubber Drier Machine! Enjoy effortless and efficient floor cleaning.
